Changing the Game with Data and Insights – Data Science Singapore

Another great Data Science Singapore (DSSG) event! Hong Cao from McLaren Applied Technologies shared his insights on applications of data science at McLaren.

The first project is using economic sensors for continuous human conditions monitoring, including sleep quality, gait and activities, perceived stress and cognitive performance.


Gait outlier analysis provides unique insight on fatigue levels while exercising, probability of injury and post surgery performance and recovery.

Gait Analysis Data Science

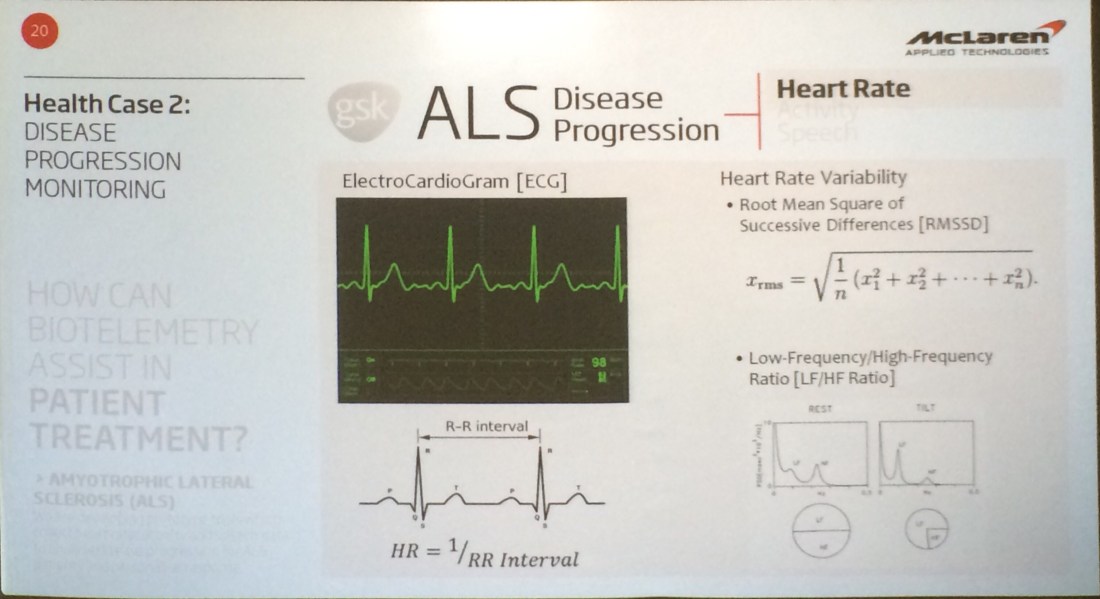

A related study looks into how biotelemetry assist in patient treatment such as ALS (Amyotrophic Lateral Sclerosis) disease progression monitoring. The prototype tools collect heart rate, activity and speech data to analyse disease progression.


HRV (Heart Rate Variability) features are extracted from both the time and from the frequency domains.


Activity score is derived from the three-axis accelerometer data.


The second project was a predictive failure POC, to help determine the condition of Haul Trucks in order to predict when a failure might happen. The cost of having an excavator go down in the field is $5 million a day, while the cost of losing a haul truck is $1.8 million per day. If you can prevent it from going down in the field, that makes a huge difference


Using The Device’s Accelerometer And Magnometer To Orient A Compass [Android]


private String TAG = "SensorCompass";

// Sensors & SensorManager
private Sensor accelerometer;
private Sensor magnetometer;
private SensorManager mSensorManager;

// Storage for Sensor readings
private float[] mGravity = null;
private float[] mGeomagnetic = null;

// Rotation around the Z axis
private double mRotationInDegress;


protected void onCreate(Bundle savedInstanceState) {

		// ...

		// Get a reference to the SensorManager
		mSensorManager = (SensorManager) getSystemService(SENSOR_SERVICE);

		// Get a reference to the accelerometer
		accelerometer = mSensorManager

		// Get a reference to the magnetometer
		magnetometer = mSensorManager

		// Exit unless both sensors are available
		if (null == accelerometer || null == magnetometer)


Register this class as a listener for the accelerometer events and for magnetometer events:

	protected void onResume() {

		// Register for sensor updates

		mSensorManager.registerListener(this, accelerometer,

		mSensorManager.registerListener(this, magnetometer,

The onPause method unregister this class as a listener for all sesnors

protected void onPause() {

	// Unregister all sensors

The onSensorChanged method process the incoming sensors’ events

public void onSensorChanged(SensorEvent event) {

	// Acquire accelerometer event data
	if (event.sensor.getType() == Sensor.TYPE_ACCELEROMETER) {

		mGravity = new float[3];
		System.arraycopy(event.values, 0, mGravity, 0, 3);

	// Acquire magnetometer event data
	else if (event.sensor.getType() == Sensor.TYPE_MAGNETIC_FIELD) {

		mGeomagnetic = new float[3];
		System.arraycopy(event.values, 0, mGeomagnetic, 0, 3);


	// If we have readings from both sensors then
	// use the readings to compute the device's orientation
	// and then update the display.

	if (mGravity != null && mGeomagnetic != null) {

		float rotationMatrix[] = new float[9];

		// Users the accelerometer and magnetometer readings
		// to compute the device's rotation with respect to
		// a real world coordinate system

		boolean success = SensorManager.getRotationMatrix(rotationMatrix,
				null, mGravity, mGeomagnetic);

		if (success) {

			float orientationMatrix[] = new float[3];

			// Returns the device's orientation given
			// the rotationMatrix

			SensorManager.getOrientation(rotationMatrix, orientationMatrix);

			// Get the rotation, measured in radians, around the Z-axis
			// Note: This assumes the device is held flat and parallel
			// to the ground

			float rotationInRadians = orientationMatrix[0];

			// Convert from radians to degrees
			mRotationInDegress = Math.toDegrees(rotationInRadians);

			// Request redraw

			// Reset sensor event data arrays
			mGravity = mGeomagnetic = null;
